Connecting Rod Assembly, VW CONSTELLATION, 26.280 2017-p.t., D 0836 LFL 64
- VW
- CONSTELLATION
- 26.280
- Engine parts
- Crankshaft Drive
- Connecting Rod Assembly
Engine parts
Crankshaft Drive
- Radial Oil Seal, Set
- Connecting Rod Assembly
-
Big End Bearings 9
Small End Bushes 5
connecting rod - Piston Assembly
- Crankshaft
Manufacturer
Sort by:
Lowest Price
▼
Rating
Lowest Price
Delivery time
Available
Products: 14
Filters
Big End Bearings
Big End Bearings
Surface:
Cathodic Sputtering, Galvanically coated
Cathodic Sputtering, Galvanically coated
Quantity Unit:
Pair
For wall thickness from:
1,975 mm
To wall thickness:
1,987 mm
For shaft diameter from:
69,981 mm
To shaft diameter:
70,000 mm
For housing diameter from:
74,000 mm
To housing diameter:
74,019 mm
For bearing clearance from:
0,026 mm
To bearing clearance:
0,088 mm
Oversize:
0 mm, 0,00 mm
Width from:
28,700 mm
Width to:
29,000 mm
Packaging length:
4,0 cm, 9,3 cm
Packaging width:
6,27 cm, 6,30 cm
Packaging height:
4,00 cm, 9,00 cm
Net Weight:
109 g, 96 g
Big End Bearings
Big End Bearings
Surface:
Cathodic Sputtering, Galvanically coated
Cathodic Sputtering, Galvanically coated
Quantity Unit:
Pair
For wall thickness from:
2,100 mm
To wall thickness:
2,112 mm
For shaft diameter from:
69,981 mm
To shaft diameter:
70,000 mm
For housing diameter from:
74,000 mm
To housing diameter:
74,019 mm
For bearing clearance from:
0,026 mm
To bearing clearance:
0,088 mm
Oversize:
0.25 mm, 0,25 mm
Width from:
28,700 mm
Width to:
29,000 mm
Packaging length:
4,0 cm, 9,3 cm
Packaging width:
6,30 cm, 6,27 cm
Packaging height:
4,00 cm, 9,00 cm
Net Weight:
113 g
Big End Bearings
Big End Bearings
Surface:
Cathodic Sputtering, Galvanically coated
Cathodic Sputtering, Galvanically coated
Quantity Unit:
Pair
For wall thickness from:
2,225 mm
To wall thickness:
2,237 mm
For shaft diameter from:
69,981 mm
To shaft diameter:
70,000 mm
For housing diameter from:
74,000 mm
To housing diameter:
74,019 mm
For bearing clearance from:
0,026 mm
To bearing clearance:
0,088 mm
Oversize:
0.5 mm, 0,50 mm
Width from:
28,700 mm
Width to:
29,000 mm
Packaging length:
4,0 cm, 9,3 cm
Packaging width:
6,30 cm, 6,27 cm
Packaging height:
4,00 cm, 9,00 cm
Net Weight:
119 g

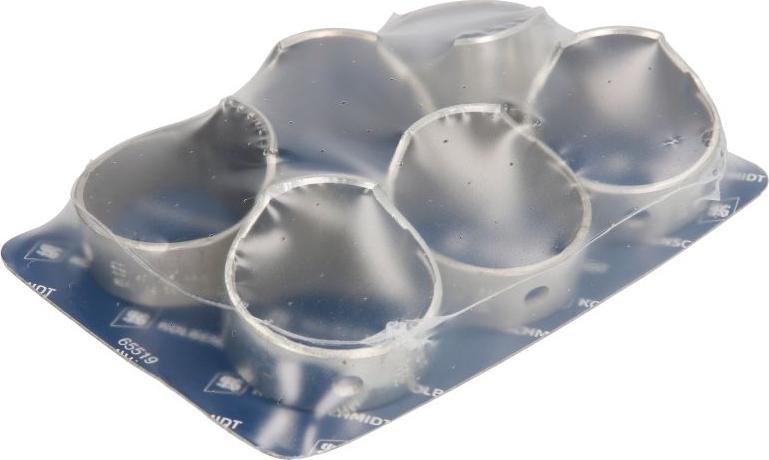

Small End Bushes, connecting rod
Small End Bushes, connecting rod
Width:
35,10 mm
Machining:
Semi
Component Number:
55-3946
Version:
trapezoid bush
Big End Bearings
Big End Bearings
Width:
29 mm
Surface:
Cathodic Sputtering
Bronze coated steel back
Component Number:
71-4748
For shaft diameter from:
69,981 mm
To shaft diameter:
70 mm
For housing diameter from:
74 mm
To housing diameter:
74,019 mm
For bearing clearance from:
0,04 mm
To bearing clearance:
0,1 mm
Oversize:
0.25 mm
Undersize:
0,25 mm
Big End Bearings
Big End Bearings
Width:
29 mm
Surface:
Cathodic Sputtering
Bronze coated steel back
Component Number:
71-4748
For shaft diameter from:
69,981 mm
To shaft diameter:
70 mm
For housing diameter from:
74 mm
To housing diameter:
74,019 mm
For bearing clearance from:
0,04 mm
To bearing clearance:
0,1 mm
Oversize:
0.50 mm
Undersize:
0,50 mm
Big End Bearings
Big End Bearings
Thickness:
1,987 mm
Width:
29 mm
Surface:
Cathodic Sputtering
Bronze coated steel back
Component Number:
71-4748
Version:
upper half bearing
For shaft diameter from:
69,981 mm
To shaft diameter:
70 mm
For housing diameter from:
74 mm
To housing diameter:
74,019 mm
For bearing clearance from:
0,04 mm
To bearing clearance:
0,1 mm
Standard Size [STD].
Small End Bushes, connecting rod
Small End Bushes, connecting rod
Repair stage:
SEMI
Width 1:
35.25 mm
Width 2:
22.4 mm
For shaft diameter from:
41,994 mm
To shaft diameter:
42 mm
For housing diameter from:
46 mm
To housing diameter:
46,02 mm
Small End Bushes, connecting rod
Small End Bushes, connecting rod
Repair stage:
SEMI
Quantity:
6
Quantity Unit:
Kit
Component Number:
60325690
Big End Bearings
Big End Bearings
Quantity:
2
Quantity Unit:
Pair
Component Number:
60328600, 60329600
Standard Size [STD].
Big End Bearings
Big End Bearings
Repair stage:
0,25
Quantity:
2
Quantity Unit:
Pair
Component Number:
60328610, 60329610
Oversize:
0.25 mm
Big End Bearings
Big End Bearings
Repair stage:
0,50
Quantity:
2
Quantity Unit:
Pair
Component Number:
60328620, 60329620
Oversize:
0.5 mm
