Oil Filter, VW WORKER, 13.180 2005-p.t., 6.10 TCA
- VW
- WORKER
- 13.180
- Engine parts
- Lubrication
- Oil Filter
Manufacturer
Products: 2
Filters

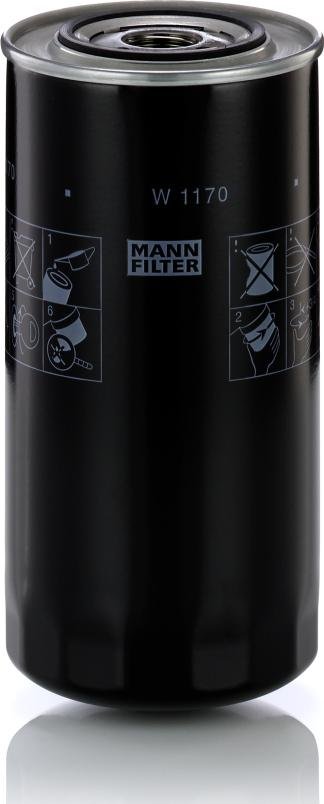

Oil Filter
Oil Filter
Height:
227 mm
Thread Size:
1"-12UNF-1B
Outer diameter:
108 mm
Filter type:
Screw-on Filter
With one anti-return valve
Outer diameter 2:
71 mm
Inner diameter 2:
62 mm
Bypass Valve Opening Pressure:
1.2 bar
Part number of the recommended special tools:
LS 11
Gasket inside diameter:
63 mm
Gasket outside diameter:
72 mm
EU Product Safety Regulation (GPSR):
IEC 60417-6183 mechanical expertise required
IEC 60417-6183 mechanical expertise required
Oil Filter
Oil Filter
Diameter:
108,0 mm
Height:
227 mm, 225 mm
Thread Size:
1" 12UNF-2B, 1"-12UNF-1B, 1"-12UNF-1B
1" 12UNF-2B, 1"-12UNF-1B, 1"-12UNF-1B
Seal Diameter:
62,0, 62,5 mm, 72 mm
Diameter 2:
71,6 mm
Inner diameter:
63 mm
Outer diameter:
108 mm
Tightening Torque:
15 Nm
Valve type:
Overflow Valve
Filter type:
Screw-on Filter, Spin-on Filter
Screw-on Filter, Spin-on Filter
With one anti-return valve
Packaging length:
11,2 cm
Packaging width:
11,20 cm
Packaging height:
22,90 cm
Net Weight:
1030 g
